Photos of Sega Pengo Isolation Transformer

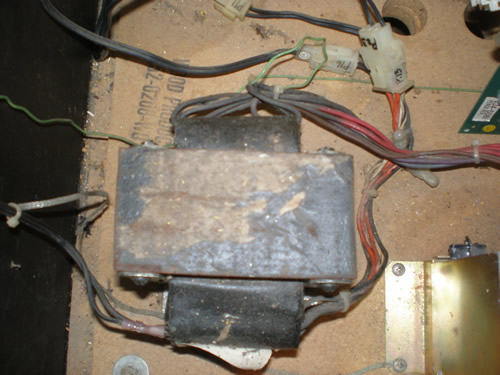

Photos of the isolation transformer. Pretty old and crappy looking like most of these from the 80’s, but how it looks isn’t an indication of how it works. I just need to figure out what voltages are going in these wires from the Power Supply so I can tie in a switching power supply instead.
